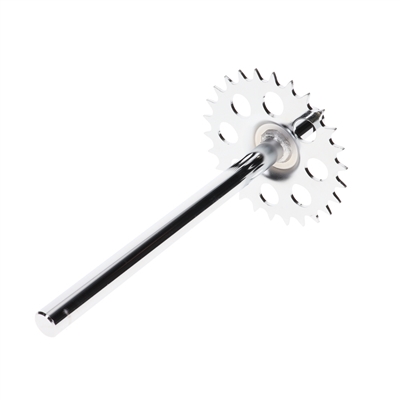

puch maxi 26t pedal crank shaft - 230mm
puch maxi 26t pedal crank shaft - 230mm




chrome pedal shaft for puch maxi, newport, etc!!

of course you can also use this on many many other bikes.. check the dimensions below and see if it'll work for you.

16mm diameter shaft
230mm total length
190mm length on the longer side
40mm length on the shorter side
26 tooth

note you MUST use the special dished washer on the inside of the pedal crank sprocket or else you will have chain alignment issues.

these do NOT work on pinto, swinger and cobra frames as they do not have sufficient inwards dish causing the chain line to be incorrect.
