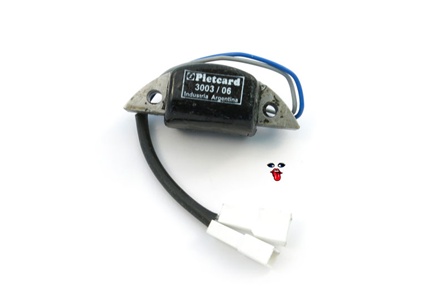

pietcard CDI internal coil - 06 - black - bosch ducati - clockwise
pietcard CDI internal coil - 06 - black - bosch ducati - clockwise



pietcard CDI . these are interesting CDI's. you put the coil on your stock points stater plate and use your stock points flywheel! this as an electronic converter made to replace the points and condenser.

use this for all mopeds equipped with clockwise small bosch or ducati points ignitions and flywheel - found on some minarelli, sachs 505 and some derbi mopeds and others

motor rotation - clockwise

coil color = BLACK

distance between centers of holes in the coil = 45mm

in order to complete your pietcard ignition system you will need a CDI box. generally the 2013 or the 2041 is used. do your research first and make sure you choose the correct one for your setup. if a review doesn't mention which box is being used it will more than likely be referring to the 2013 as prior to march 2014 these were sold with the 2013 box.

It is also highly recommended that you fully complete the pietcard setup with this pietcard external coil.

taco rating taco rating 5 of 5 5 of 5 Total Reviews: 1 give your taco rating here

  0 taco eaters like this review
5 of 5 Works on a Batavus m56 June 28, 2014
taco eater : Michael Leinartas from Oak Park, IL United States
Clockwise, bosch, 45mm bolt spacing.. thought it was worth a shot and.. Yes! Works, just need some 1/4" spacers if youre going to re-use the same bolts so that they dont stick so far out the back of the stator plate

Well... It works at low RPM (both 2013, 2041). Once you get above 1500~2000 the timing changes 180deg. So really, no. It doesn't work on the m56.
