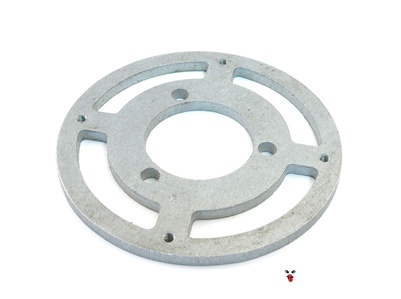

V1 hpi MINI rotor fan mounting plate
minarelli V1 hpi MINI rotor fan mounting plate



you want a fan on your minarelli V1 hpi mini rotor? no problem!!

the mounting holes for the magneto mount are m6 x 10mm with washers and the fan mounting holes are m4 x 5mm

bracket dimensions -

ID - 38mm
OD - 100mm
5mm thick

weight - 2oz

brought to you by NAZ, thanks dude!

taco rating taco rating 4.5 of 5 4.5 of 5 Total Reviews: 3 give your taco rating here

  0 taco eaters like this review
5 of 5 Does not fit with Gila kit June 4, 2015
taco eater : Derek Metal Ponies from Quincy, MA United States
The fan blades will rub on the cylinder fins pretty good, bummer. I'll update this if I can get it to work.

It's a nice piece, I just wish I knew this before buying it - welp now you know

***Update 6/4/15***
Now 5 stars. I finally got around to working on this. I put a spare 103 fan on the sander and shaved off little by little until it spun freely. Cleaned it up and an exacto knife and boom, actually works. I did not have to shim or space anything, but that may be because I had to hack up the fan cover for the Gila. Regardless, it works, and my temps are down. If you have a V1 and an HPI, regardless of the kit, you'll want one of these. You CAN make it work!

Was this review helpful to you?

  0 taco eaters like this review
5 of 5 just like the wizard said June 18, 2014
taco eater : Ryan Nash from Columbia, MO United States
you need to use a washer or two behind the fan cover in order for the fan to not hit the cover.  it works great... and now you get a fan on your hpi on your v1... wow.

Was this review helpful to you?

  0 taco eaters like this review
4 of 5 setup June 17, 2014
taco eater : Naz from seattle, WA United States
You might need to play with the spacing a bit to make this work.  A couple washers behind the whole fan assembly to get the spacing right so it doesn't rub.  I personally haven't had one of V1 adapted HPI yet and I'm not sure how far the flywheel sits out.
