tomos OEM stock mc80 cast iron 47mm 80cc cylinder only

$49.99

:HERE NOW!!

qty:

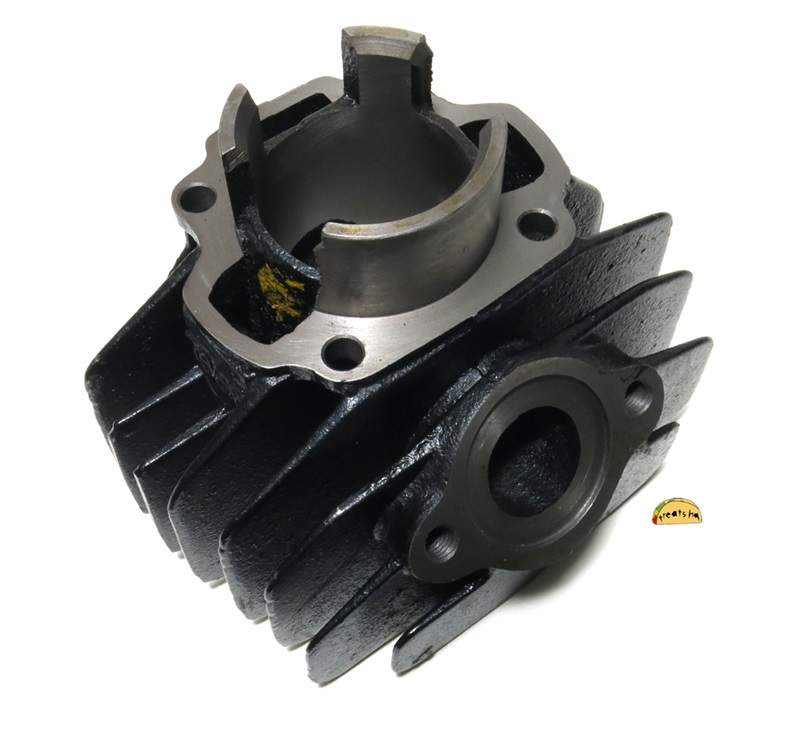

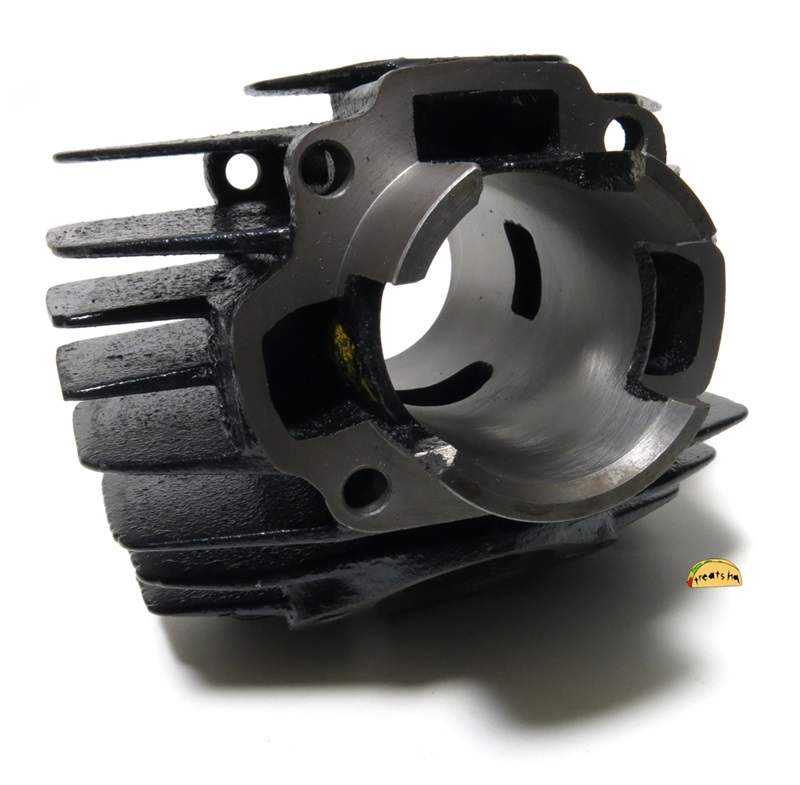

stock cylinder for the tomos mc80! cast iron 47mm 80cc case inducted style cylinder

prob gunna have a broken fin or two, cast iron dude..

for all the hackers n tuners out there, here are the measurements:

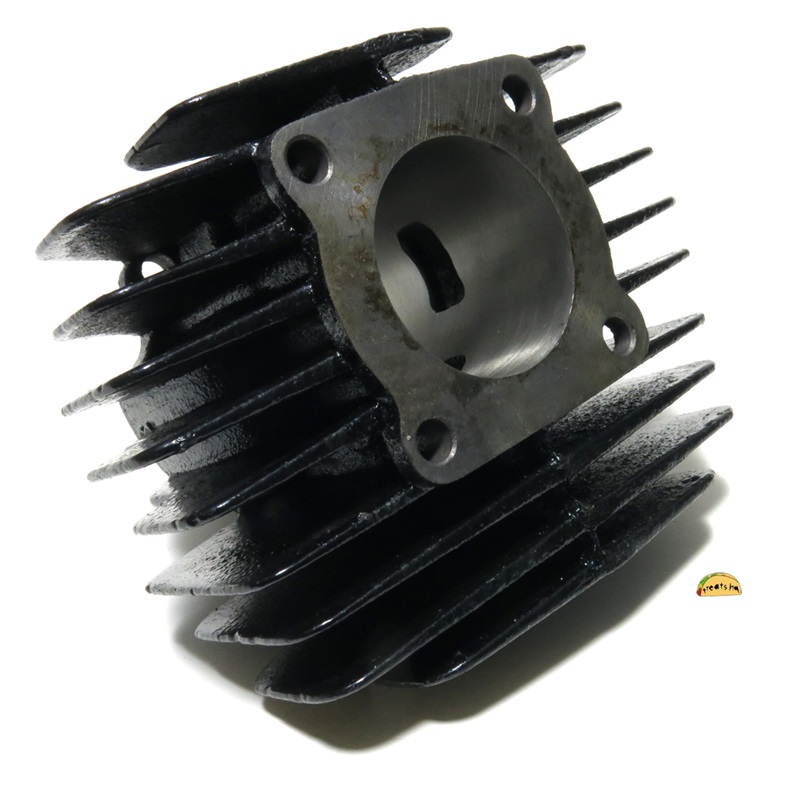

- 53mm x 53mm hole pattern
- 82mm from top of cylinder to beginning of cylinder skirt
- OD of cylinder skirt is 58mm
- exhaust hole spacing is 58mm center to center and m8 threading
- exhaust ID is 25mm

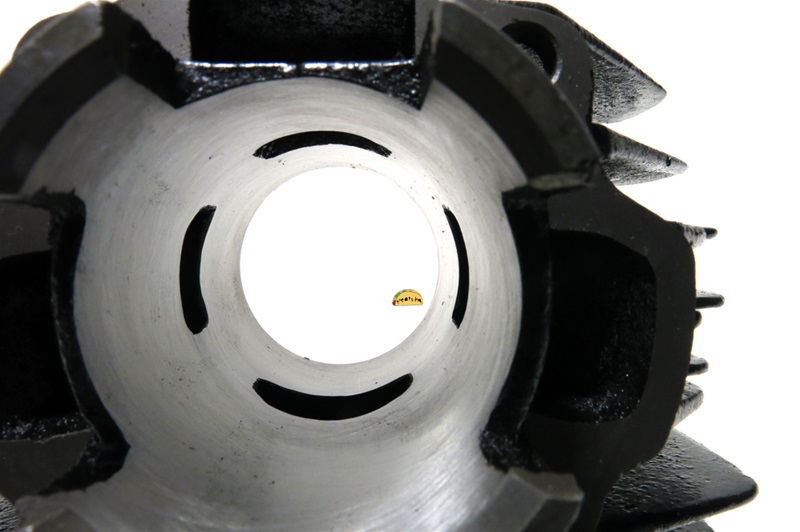

three transfers at the base - 2 side and one on top

we have the replacement piston by itself here!!

well, lets see what else this will fit on....hmm

tomos part number 233938

rate this moped part be the first!
