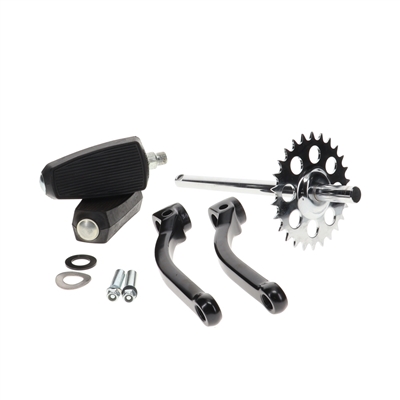

puch MAXI black pedal crank assembly

puch MAXI black pedal crank assembly - standard length

$86.99

qty:

here's what ya get in this PARTYYY!:

1 of 16mm ID spring washer for pedal shafts ($0.99 value!)
1 of puch maxi 26t pedal crank shaft - 230mm ($31.49 value!)
1 of pedal arm set for your moped and his and hers and mine too - BLACK ($27.99 value!)
2 of cotter pin - pick your size - 9.5mm ($5.00 value!)
1 of peugeot / motobecane plastic pulley spacer shim - 28mm ($0.99 value!)
1 of puch pedal shaft DISHED washer ($2.99 value!)
1 of genuine UNION puch magnum style moped pedals ($24.99 value!)

complete pedal shaft assembly with standard maxi length crank, pedal arms, pedals, pedal crank spacer and cotter pins!!

perfect for puch maxi, newport, and hmmmm...check the dimensions below and see if it'll work for you!

probably a good time to grab some new pedal shaft bushings for yer bike as well!! there are hmmm maybe 214454927 different outer diameter shims for the various mopeds across the world so make sure you measure before buying em!!

comes with the special dished washer that goes behind the pedal sprocket!! (not shown in photo)

specs:

16mm diameter shaft

230mm total length

190mm length on the longer side

40mm length on the shorter side

26 tooth

pedal arm clearance:

9/16" pedal thread size
182mm total length
47mm of outward clearance
28mm base

taco rating taco rating 4 of 5

4 of 5 Total Reviews: 1 give your taco rating here

0 taco eaters like this review

Sprockets tiny!	March 1, 2023
taco eater : Justin Finley from St.thomas, ON Canada

Make sure you order a master link and chain breaker if your gonna reuse your original chain. You are gonna need to take out a few links to get a tight chain again
