puch E50 powerdynamo CDI - 12v / 70w AC
puch E50 powerdynamo CDI

  $300.00

 :*sorry none today*
qty:

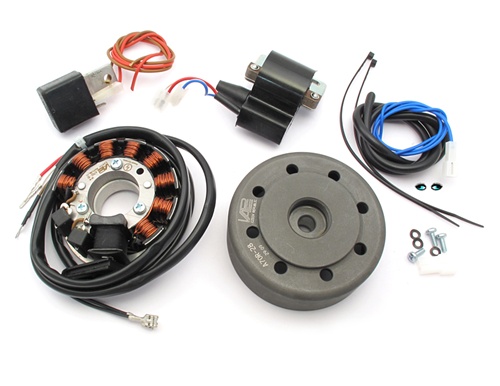

the powerdynamo is back! this one is for puch E50 (one speed) engines. this is a super solid CDI unit, very reliable with lights! comes with full complete instructions, with step by step instruction and color photos + wiring diagram. i'm sure you can mount this to other moped too, like derbi or sachs?

magnet based generator with integrated fully electronic ignition. output at 12 volts / up to 70 watts AC. solid state. maintenance free, electronic ignition!

modern technology for brilliant lights and solid spark (solid state)
all parts are new
brighter lights!
classic look
better starting, better fuel burning

use the 27mm x 1.25mm puller to get this flywheel off

magneto has an OD of 104mm!

loose yer instructions? find em here

taco rating 4.5 of 5 Total Reviews: 8 give your taco rating here

  0 taco eaters like this review

Loads of power & well constructed April 12, 2013
taco eater : Nate from Chicago, IL United States
Great CDI if you don't wanna worry about anything. Follow the instructions and it will work, spot on. Be super careful not to fudge the wires on the coils.

Get the complete unit with regulator, unless you already got one for a floating ground. Otherwise, yeah, gotta get one.

Note: you can find this from powerdynamo for 250 euros, not $$$, and shipping is a killer. Best price I could find for new. Treats, as always, rocks with shipping!!!

Was this review helpful to you?

  4 taco eaters like this review

One of the better CDI's April 7, 2013
taco eater : David L from San Francisco , CA United States
I installed a powerdynamo about 3 years ago on my bike and haven't touched it since. Great low end power and able to run auxilary 12 volt LED lights no problem. These CDI systems are worth the money.
Simple plug and play: red-red, white-white, blue to kill switch. Rectifier takes BOTH black wires from stator, red wire out is to all lights - split it off to head/stop/running/speedo/anything! (rectifier will ground to the frame when you mount it.)

UPDATE: ughhhh, a lighting coil copper wire/winding came undone and rubbed against the flywheel causing a total cut out and loss of power. So I had to buy a whole new stator plate. Strange that a light coil ruined everything. Be sure to tuck the wires good.

UPDATE 2013: this same CDI is now on a derbi flat reed engine. Clockwise rotation. Just drilled on the stator backplate - one new hole for mounting and wallowed out another a little larger for second mounting hole. This will bring the stator/flywheel center.

Was this review helpful to you?

  0 taco eaters like this review

buy direct and save May 28, 2012
taco eater : Irritum Nihil from San Francisco, CA United States
you can get this set complete  for about ~250 bucks if you buy from powerdynamo.biz directly...

Was this review helpful to you?

  0 taco eaters like this review

Best Batavus Laura M48 CDI Ever! November 23, 2011
taco eater : trickMETRIC from Grand Rapids, MI United States
Ran this on the super bat all summer. Mega 12v DC when using a scooter rectifier.

Was this review helpful to you?

  1 taco eaters like this review

a light at the end of the tunnel... March 19, 2011
taco eater : Ryan from Columbia, MO
if you think you've died and you're going to heaven think again... that light at the end of the tunnel is my bike with a powerdynamo on it.  the lights are insanely bright... you *MUST* use the supplied voltage regulator or you will be incredibly sorry.  this brought my gila to life...

setup:

1) with flywheel slightly on (pressure with your hand) find TDC
2) remove flywheel as gently as possible as to not move the crank from TDC
3) with your micrometer (I used a buzzetti one) advance the piston to 2mm BTDC (per powerdynamo instructions)
4) very carefully put the flywheel on making sure the line on the flywheel matches up with the red dot on the stator
5) take a rubber mallet and whack that sucker on
6) hold the flywheel with your hand taking care to not move the crank
7) unscrew timing tool
8) insert piston stop very slowly until you feel it barely touching the piston crown
9) tighten the flywheel nut down
10) blast blast away...

Was this review helpful to you?
