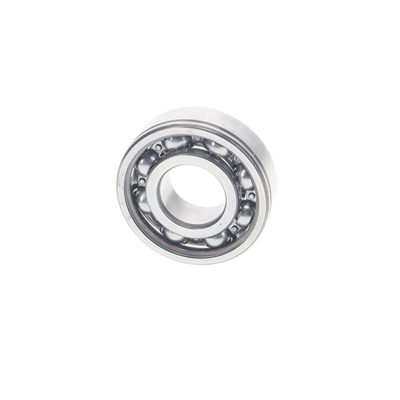

coupon clippers SKF 6203 C3 crankshaft bearing for puch e50 + peugeot + derbi + garelli + tomos + solex
coupon clippers 6203 C3 crankshaft bearing for puch e50 + peugeot + derbi + garelli + tomos + solex

  $6.66

 :HERE NOW!!

Free Shipping
qty:



long story short we have acquired a whole gang of SKF brand 6203 NR (snap ring) bearings, but the snap ring is located incorrectly! with the snap ring removed they are perfecto for rebuilding e50 (one speed) engines on any puch moped. also one of the bearings for peugeot engines, derbi flat reed and piston port/pyramid reed magneto side!!!!! tomos A35/A55 (oem#035070), garelli NOI +VIP (check NOI first! see note below), morini m1/m01/M02, yamaha QT50 (both sides), puch ZA50 output shaft and others like solex !!! ++ 1 of 2 honda nu50 transmission bearings (6202 is the other).

A total rebuild of your E50 will require 4 bearings - 3 of these and one 6203 NR. see here for more puch bearing sets

for garelli NOI you need 2 of these for just the crank or 4 for a full rebuild, take note though some garelli noi use a 16003 bearing and some use a 6203 apparently...check first !


for garelli VIP you need 2 of these for the crank bearings, plus one more for the driveshaft if you like

take note! pre-1986 tomos A3 engines use L17 bearings NOT 6203!

bearings measurements:

17mm ID
40mm OD
12mm wide

May or may not come with snap ring installed, just yank it off and toss it!

OUR LOSS, YOUR GAIN!!
