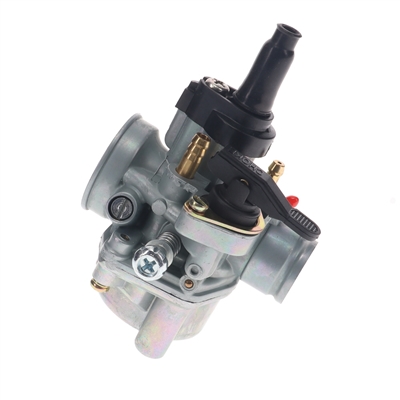

PHVA 17.5mm carburetor - CLONE
PHVA 17.5mm carburetor - clone




  $75.00

 :HERE NOW!!
qty:



17.5mm PHVA clone carburetor for the tomos A55 engines, yeahhh. you could use this on something else probably, but hmm why o why? this is the direct bolt in bolt on go go go carb for the A55, total perfecto replacement from your small lil one. what comes on those things? like 12.5mm? ohh vile. fits right in n on with your oil injection and all those goodies.

PHVA air filter mounting diameter = 35mm

use a rubber coupler mount like this to mount to the intake

uses 6mm dellorto jets

taco rating 4.5 of 5 Total Reviews: 2 give your taco rating here

  1 taco eaters like this review

good quality carb December 29, 2013
taco eater : Ryan Root from Key West
well mine didnt come with a choke lever and it had a 67 main jet. using this on my streetmate with airsal 70cc kit gonna need to up jet

Was this review helpful to you?

  0 taco eaters like this review

I'm happy widdit. March 23, 2011
taco eater : Automode from Utah
Comes with the choke lever and an 83 Dellorto jet. I had to take it down to a 70 (Utah at 4500 feet ASL). The fuel inlet on this carb points strait up, unlike the original carb, which is angled to the front. The oil injection inlet is angled, unlike the original. It still attached fine. It also has an addition vacuum port, which is capped off. Fit's right on the original intake and is as big as you can go with the stock intake. My Streetmate R topped out at 31 mph with this carb and a technigas pipe. These are the only two mods I have added to this ped and I'm pretty sure the weak link is the pipe - which was twice what this carb cost. Of course, the bike only has 20 miles on it so maybe after the break-in it might go up? Overall, it was a wise purchase on my part. The quality looks to be no less than the Dellorto I removed.

Was this review helpful to you?
