17" black swooshy five star FRONT mag wheel
17" black swooshy five star FRONT mag wheel




  $145.00

 :HERE NOW!!

qty:



brand new matte black 17" swooshy style front five star mag wheel. use for puch, peugeot, and tons of more bikes that fit the specs...

wheel has a width of 110mm, so the forks must be spaced at least 130mm or larger
outer rim width is 49.9mm
inner rim width is 32.2mm
uses 6301 sealed wheel bearings
drum inner diameter is huge, 110mm, perfect for tons of braking power
comes with new 110 x 25mm brake pads
opposite of the drum side, the wheel bearing has a 21 x 37 x 7 seal to keep dirt and dust out
the brake tab slot extends up 50mm from the center of the axle and is a 15.3mm wide slot, make sure your forks will reach this slot. almost all puch moped forks will fit these wheels in the slot and most peugeot, but make a note and measure!

comes with a 12mm sealed front axle but you will need spacers to get the wheel centered, we have some 12mm spacers here and some axle washers!

for replacement brake pads, use some 110 x 25mm pads that do NOT have the small ridge in the round part of the pad. you can file that part down, though, if necessary and they will work.

there is a spot for a speedo drive, but we dont have any cables for this right now, but you use gps anyway right??

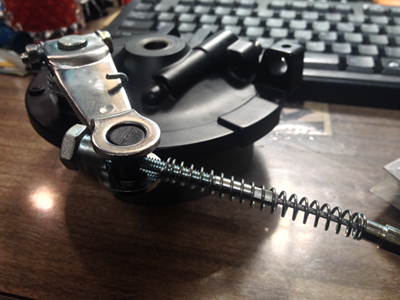

the brake arm has a large motorcycle style slot that normally uses a cylinder style brake stop, rod, and spring, which we dont have right now. it will look a bit like this:


basically, all you need is a spacer on the brake cable stop because the hole is quite large, about 9.7mm and a cylinder type stop on the brake arm, then you can use any front brake cable
