dellorto PHBL 22mm BD carburetor

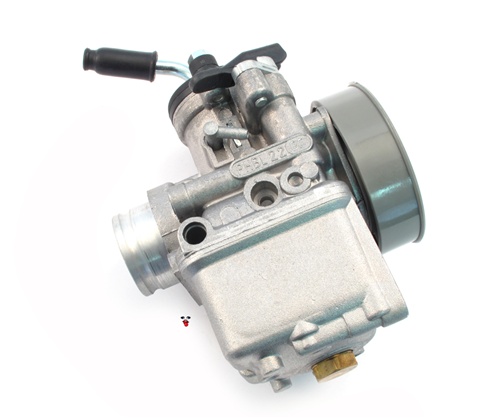

22mm PHBL BD dellorto spigot style carburetor. this carb uses 6mm dell jets but the idle jet, starter jet and needle valve we don't carry yet. soon enough we will though! other than that this carb has a 6mm fuel inlet, 2 breather vents, one 14mm bolt that holds the float bowl in place. this is really cool the 14mm bolt also holds the jet!

31mm spigot OD

38mm x 1.25mm screw type air filter mount, with the included velocity stack being 60mm.

here are some air filter / velocity stack options
